CABLE FLY 1.50 GREEN JMP

CABLE FLY 1.50 GREEN JMP

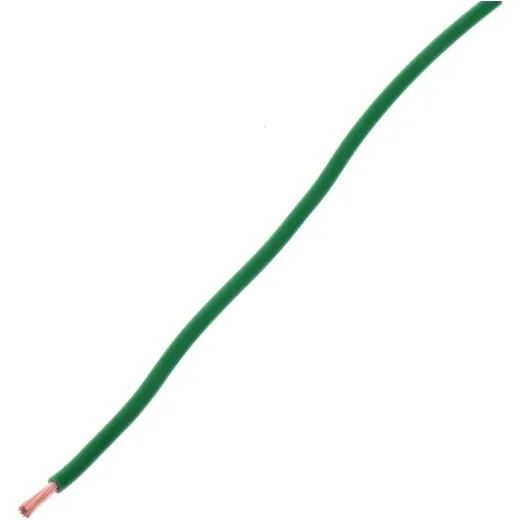

Product Name: CABLE FLY 1.50 GREEN JMP

Description: The FLY JMP cable is designed for low-voltage installations in motor vehicles. This flexible automotive cable consists of bare copper wire with durable PVC insulation, ensuring optimal performance in demanding environments.

Conformity to Standards: PN-E-90181

The cable features Class 5 copper wires in accordance with PN-EN 60228 and TI1 PVC insulation.

Technical Data:

• Conductor Cross-Section: 1.5 mm²
• Nominal Insulation Thickness: 0.6 mm
• Outer Diameter: 3.0 mm
• Nominal Voltage: 220 V
• Test Voltage: 2500 V
• Operating Temperature Range: From -40ºC to +90ºC
• Minimum Bending Radius: 4xD (D - outer cable diameter)
• Insulation Color: Green
• Length: 25 m

Manufacturer Nr.: JMP

EAN: 4043981452525
