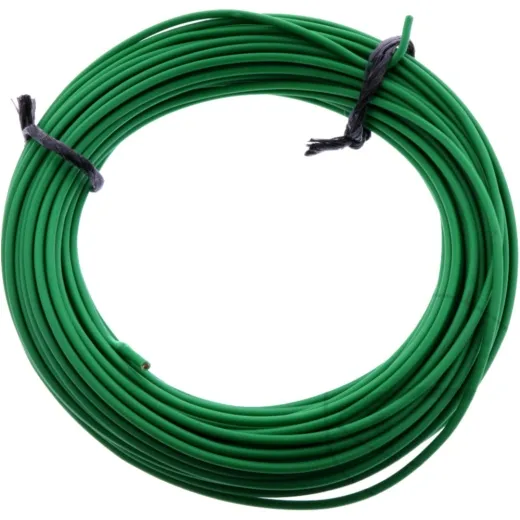

CABLE FLY 1.50 GREEN JMP
Product no.: BTS-157.05.39
CABLE FLY 1.50 GREEN JMP
Product Name: CABLE FLY 1.50 GREEN JMP
Description: The FLY JMP cable is designed for low-voltage installations in motor vehicles. This flexible automotive cable consists of bare copper wire with durable PVC insulation, ensuring optimal performance in demanding environments.
Conformity to Standards: PN-E-90181
The cable features Class 5 copper wires in accordance with PN-EN 60228 and TI1 PVC insulation.
Technical Data:
- Conductor Cross-Section: 1.5 mm²
- Nominal Insulation Thickness: 0.6 mm
- Outer Diameter: 3.0 mm
- Nominal Voltage: 220 V
- Test Voltage: 2500 V
- Operating Temperature Range: From -40ºC to +90ºC
- Minimum Bending Radius: 4xD (D - outer cable diameter)
- Insulation Color: Green
- Length: 25 m
| Technische Daten | |
|---|---|
| Verwendung | Fahrzeugleitung |
| Anzahl der Adern | 1 |
| Querschnitt | 1.5 mm² |
| Isolierung | PVC |
| Farbe | grün |
| Länge | 25 Meter |
Manufacturer Nr.: JMP
EAN: 4043981452525
Product Features
Price:
25,67 EUR
19 % VAT incl. excl. Shipping costs
