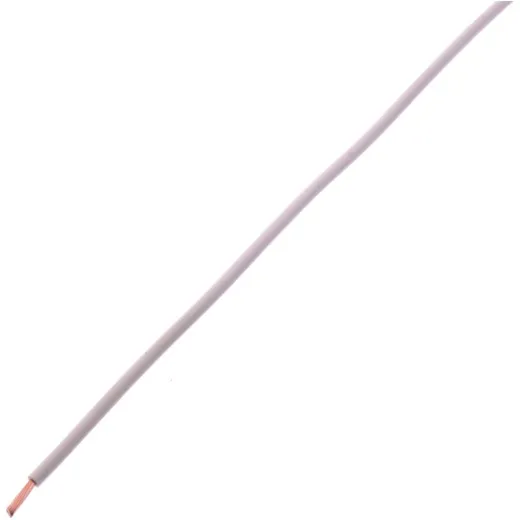

The FLY JMP cable is an exceptional choice for low-voltage installations in motor vehicles. Designed with flexibility and durability in mind, this single-core automotive cable is constructed from bare copper wire with high-quality PVC insulation.
Conformity to Standards: PN-E-90181
Conductor Cross-Section: 1.5 mm²
Nominal Insulation Thickness: 0.6 mm
Outer Diameter: 3.0 mm
Nominal Voltage: 220 V
Test Voltage: 2500 V
Operating Temperature Range: -40ºC to +90ºC
Minimum Bending Radius: 4xD (D - outer cable diameter)
Insulation Color: White
Length: 25 meters
This flexible automotive cable meets Class 5 copper wire standards according to PN-EN 60228, ensuring reliability and performance in demanding environments.
Technische Daten | |
---|---|
Verwendung | Fahrzeugleitung |
Anzahl der Adern | 1 |
Querschnitt | 1.5 mm² |
Isolierung | PVC |
Farbe | weiß |
Länge | 25 Meter |
Manufacturer Nr.: JMP
EAN: 4043981452471
