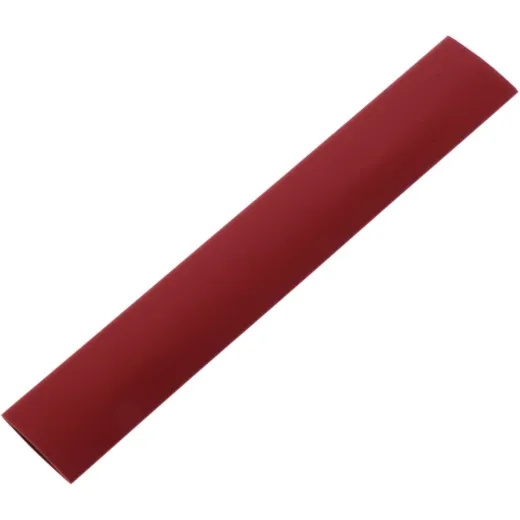

HEAT SHRINK TUBING 9.5MM RED JMP
HEAT SHRINK TUBING 9.5MM RED JMP
Enhance your electrical insulation with the HEAT SHRINK TUBING 9.5MM RED JMP. This high-quality, single-wall 2:1 heat shrink tu is made from flexible, flame-retardant polyolefin material, ensuring reliable performance in various applications.
This tu produces minimal smoke and is designed to be abrasion resistant and dioxin free, contributing to safety in the event of a fire. Its excellent electrical and physical properties make it suitable for automotive electronics, cable lugs, small electrical components, and motor and transformer cables.
Compliant with UL standards and certified for safety, this heat shrink tu is your go-to solution for insulation needs.
DIMENSIONS
- Piece length: 10 cm
- Before Ø: 9.5 ± 0.30 mm
- After Ø: 4.5 mm
TECHNICAL SPECIFICATIONS
- Material: Polyolefin (no additional adhesive film)
- Shrinkage ratio: 2:1
- Operating temperature: -55 to 125 °C
- Minimum shrink temperature: 70 °C
- Full shrink temperature: 120 °C
STANDARDS
- REACH and RoHS compliant
- Halogen free
- Flammability: UL1581 VW-1
- ISO9001
- IATF16949
- UL and CE certified
SINGLE-WALL 2:1 HEAT-SHRINK TUBING red JMP
- The single-wall heat shrink tubing from JMP is a flexible, flame-retardant polyolefin heat shrink tubing.
- This heat shrink tubing produces little smoke, is abrasion resistant and dioxin free in the event of fire and has excellent electrical and physical properties, including excellent acid and corrosion resistance.
- Suitable for insulation applications in automotive electronics, cable lugs, small electrical components, motor and transformer cables, etc.
- This product is UL listed.
DIMENSIONS
- Piece length: 10 cm
- Before Ø in mm: 9.5 ± 0.30
- After Ø in mm: 4.5
TECHNICAL SPECIFICATIONS
- Material: Polyolefin WITHOUT additional adhesive film on the inside.
- Shrinkage ratio: 2:1
- Operating temperature: -55 ~ 125 °C
- Minimum shrink temperature: 70 °C
- Full shrink temperature: 120 °C
STANDARDS
- REACH and RoHS compliant
- Halogen free
- Flammability: UL1581 VW-1
- ISO9001
- IATF16949
- UL and CE certified
Manufacturer Nr.: JMP
EAN: 4043981450033
