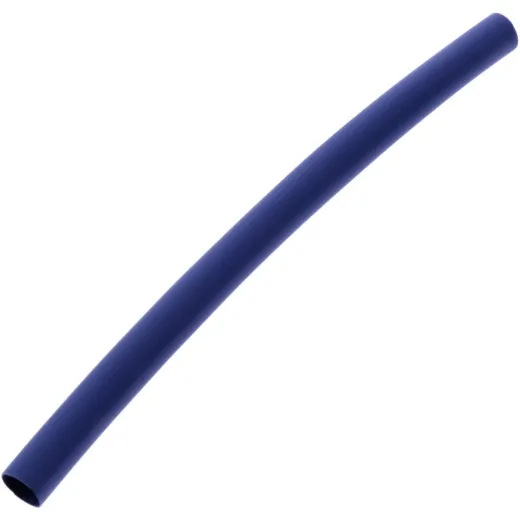

HEAT SHRINK TUBING 6.5MM BLUE JMP
HEAT SHRINK TUBING 6.5MM BLUE JMP
The single-wall, 2:1 heat shrink tu from JMP is engineered for optimal flexibility and flame resistance. Made from high-quality polyolefin, this blue heat shrink tu minimizes smoke generation and boasts abrasion resistance while being dioxin-free in case of fire. It delivers outstanding electrical and physical properties with exceptional resistance to acids and corrosion.
Ideal for insulation applications in automotive electronics, cable lugs, small electrical components, and motor and transformer cables, this product is UL listed for quality assurance.
DIMENSIONS
- Piece length: 10 cm
- Before Ø: 6.5 ± 0.20 mm
- After Ø: 3.0 mm
TECHNICAL SPECIFICATIONS
- Material: Polyolefin (without additional adhesive film)
- Shrinkage ratio: 2:1
- Operating temperature: -55 ~ 125 °C
- Minimum shrink temperature: 70 °C
- Full shrink temperature: 120 °C
STANDARDS
- REACH and RoHS compliant
- Halogen-free
- Flammability: UL1581 VW-1
- ISO9001
- IATF16949
- UL and CE certified
SINGLE-WALL 2:1 HEAT-SHRINK TUBING blue JMP
- The single-wall heat shrink tubing from JMP is a flexible, flame-retardant polyolefin heat shrink tubing.
- This heat shrink tubing produces little smoke, is abrasion resistant and dioxin free in the event of fire and has excellent electrical and physical properties, including excellent acid and corrosion resistance.
- Suitable for insulation applications in automotive electronics, cable lugs, small electrical components, motor and transformer cables, etc.
- This product is UL listed.
DIMENSIONS
- Piece length: 10 cm
- Before Ø in mm: 6.5 ± 0.20
- After Ø in mm: 3.0
TECHNICAL SPECIFICATIONS
- Material: Polyolefin WITHOUT additional adhesive film on the inside.
- Shrinkage ratio: 2:1
- Operating temperature: -55 ~ 125 °C
- Minimum shrink temperature: 70 °C
- Full shrink temperature: 120 °C
STANDARDS
- REACH and RoHS compliant
- Halogen free
- Flammability: UL1581 VW-1
- ISO9001
- IATF16949
- UL and CE certified
Manufacturer Nr.: JMP
EAN: 4043981449860
