HEAT SHRINK TUBING 5.0MM YELLOW JMP

HEAT SHRINK TUBING 5.0MM YELLOW JMP

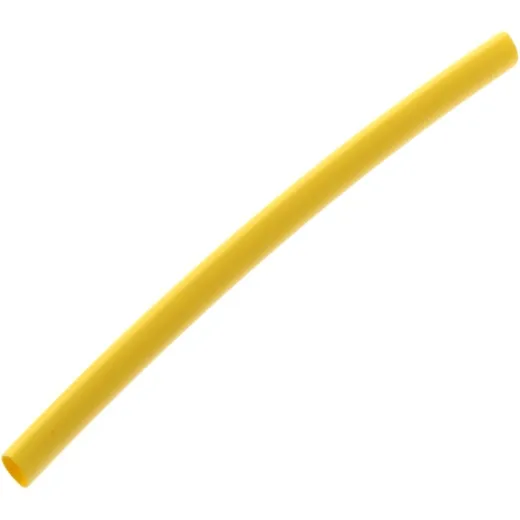

Product Name: HEAT SHRINK TUBING 5.0MM YELLOW JMP

Description: The single-wall 2:1 heat shrink tu from JMP is a flexible, flame-retardant polyolefin tu. This heat shrink tu generates minimal smoke, is abrasion-resistant, and is dioxin-free in the event of fire. It showcases outstanding electrical and physical properties, including excellent acid and corrosion resistance. Ideal for insulation applications in automotive electronics, cable lugs, small electrical components, motor and transformer cables, and more. This product is UL listed.

Dimensions:

• Piece Length: 10 cm
• Before Ø: 5.0 ± 0.20 mm
• After Ø: 2.3 mm

Technical Specifications:

• Material: Polyolefin WITHOUT additional adhesive film on the inside
• Shrinkage Ratio: 2:1
• Operating Temperature: -55 ~ 125 °C
• Minimum Shrink Temperature: 70 °C
• Full Shrink Temperature: 120 °C

Standards:

• REACH and RoHS compliant
• Halogen-free
• Flammability: UL1581 VW-1
• ISO9001
• IATF16949
• UL and CE certified

Manufacturer Nr.: JMP

EAN: 4043981450095
