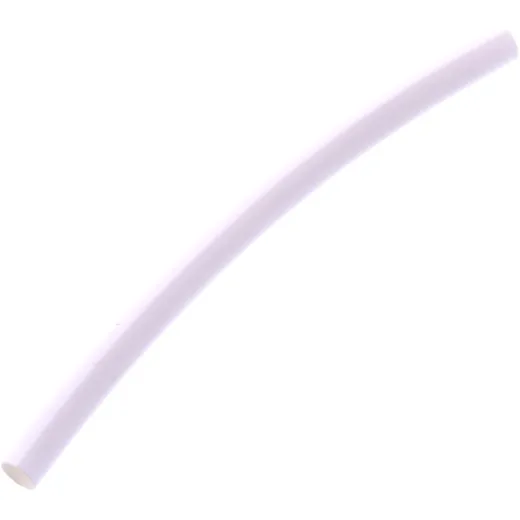

HEAT SHRINK TUBING 5.0MM WHITE JMP

HEAT SHRINK TUBING 5.0MM WHITE JMP

Discover the exceptional qualities of our HEAT SHRINK TUBING from JMP, featuring a shrink rate of 2:1. This single-wall heat shrink tu is manufactured from flexible, flame-retardant polyolefin, designed to meet the highest safety standards. With its low smoke emission and abrasion resistance, this tu ensures optimal performance in various electrical insulation applications.

The durable construction of this tu is dioxin free in case of fire and offers superior electrical and physical properties, including excellent acid and corrosion resistance. Ideal for use in automotive electronics, cable lugs, small electrical components, and motor and transformer cables.

This product is UL listed, providing peace of mind for your applications.

DIMENSIONS

• Piece length: 10 cm
• Before Ø in mm: 5.0 ± 0.20
• After Ø in mm: 2.3

TECHNICAL SPECIFICATIONS

• Material: Polyolefin WITHOUT additional adhesive film on the inside.
• Shrinkage ratio: 2:1
• Operating temperature: -55 ~ 125 °C
• Minimum shrink temperature: 70 °C
• Full shrink temperature: 120 °C

STANDARDS

• REACH and RoHS compliant
• Halogen free
• Flammability: UL1581 VW-1
• ISO9001
• IATF16949
• UL and CE certified
