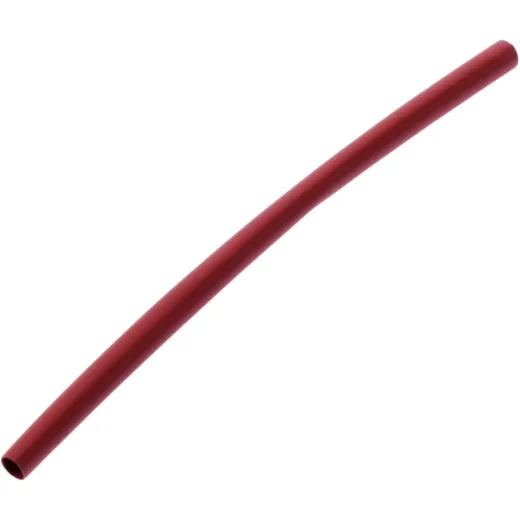

HEAT SHRINK TUBING 5.0MM RED JMP

HEAT SHRINK TUBING 5.0MM RED JMP

Enhance your electrical insulation projects with the HEAT SHRINK TUBING 5.0MM RED JMP. This single-wall, 2:1 heat shrink tu is made from flexible, flame-retardant polyolefin material, ensuring reliable performance in various applications.

The red JMP tu stands out with its low smoke emission, abrasion resistance, and dioxin-free characteristics when exposed to fire, making it a safe choice for critical environments. With excellent electrical and physical properties, it provides outstanding acid and corrosion resistance, suitable for use in automotive electronics, cable lugs, small electrical components, motor and transformer cables, and more.

This product is UL listed and meets several safety and quality standards, including REACH, RoHS compliance, and ISO certifications.

DIMENSIONS

• Piece length: 10 cm
• Before Ø: 5.0 ± 0.20 mm
• After Ø: 2.3 mm

TECHNICAL SPECIFICATIONS

• Material: Polyolefin without adhesive film on the inside
• Shrinkage ratio: 2:1
• Operating temperature: -55 ~ 125 °C
• Minimum shrink temperature: 70 °C
• Full shrink temperature: 120 °C

STANDARDS

• REACH and RoHS compliant
• Halogen free
• Flammability: UL1581 VW-1
• ISO9001 and IATF16949
• UL and CE certified
