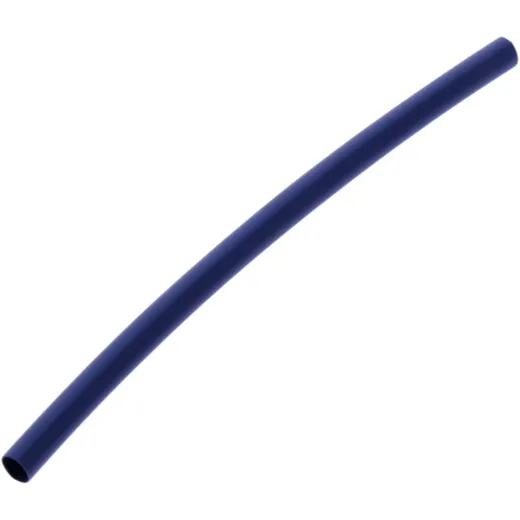

HEAT SHRINK TUBING 5.0MM BLUE JMP
HEAT SHRINK TUBING 5.0MM BLUE JMP
Introducing the HEAT SHRINK TUBING 5.0MM BLUE JMP, a top-quality single-wall heat shrink tu designed for versatile insulation applications. This blue tu is constructed from flexible, flame-retardant polyolefin, ensuring durability and safety.
The heat shrink tu features a shrinkage ratio of 2:1, allowing it to accommodate a range of cable sizes. It is engineered to produce minimal smoke when exposed to fire, with excellent abrasion resistance and dioxin-free properties. Ideal for use in automotive electronics, cable lugs, small electrical components, and motor and transformer cables, it offers outstanding electrical and physical characteristics.
This product is UL listed and meets various standards, making it a reliable choice for professional applications.
DIMENSIONS
- Piece length: 10 cm
- Before Ø: 5.0 ± 0.20 mm
- After Ø: 2.3 mm
TECHNICAL SPECIFICATIONS
- Material: Polyolefin without additional adhesive film
- Shrinkage ratio: 2:1
- Operating temperature: -55 ~ 125 °C
- Minimum shrink temperature: 70 °C
- Full shrink temperature: 120 °C
STANDARDS
- REACH and RoHS compliant
- Halogen-free
- Flammability: UL1581 VW-1
- ISO9001
- IATF16949
- UL and CE certified
SINGLE-WALL 2:1 HEAT-SHRINK TUBING blue JMP
- The single-wall heat shrink tubing from JMP is a flexible, flame-retardant polyolefin heat shrink tubing.
- This heat shrink tubing produces little smoke, is abrasion resistant and dioxin free in the event of fire and has excellent electrical and physical properties, including excellent acid and corrosion resistance.
- Suitable for insulation applications in automotive electronics, cable lugs, small electrical components, motor and transformer cables, etc.
- This product is UL listed.
DIMENSIONS
- Piece length: 10 cm
- Before Ø in mm: 5.0 ± 0.20
- After Ø in mm: 2.3
TECHNICAL SPECIFICATIONS
- Material: Polyolefin WITHOUT additional adhesive film on the inside.
- Shrinkage ratio: 2:1
- Operating temperature: -55 ~ 125 °C
- Minimum shrink temperature: 70 °C
- Full shrink temperature: 120 °C
STANDARDS
- REACH and RoHS compliant
- Halogen free
- Flammability: UL1581 VW-1
- ISO9001
- IATF16949
- UL and CE certified
Manufacturer Nr.: JMP
EAN: 4043981449853
