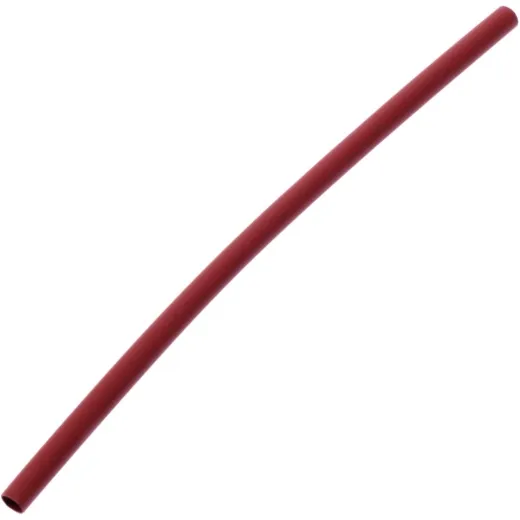

HEAT SHRINK TUBING 3.0MM RED JMP
HEAT SHRINK TUBING 3.0MM RED JMP
Introducing the HEAT SHRINK TUBING 3.0MM RED from JMP, a reliable solution for your insulation needs. This single-wall heat shrink tu offers a 2:1 shrink ratio and is designed for flexibility and durability.
Constructed from flame-retardant polyolefin, this tu minimizes smoke emission, making it a safe choice in case of fire. Its abrasion-resistant material provides excellent protection against wear, while being dioxin-free under fire conditions ensures environmental safety.
With outstanding electrical and physical properties, this heat shrink tu is perfect for various applications, including automotive electronics, cable lugs, and small electrical components. UL listed for added assurance, it meets high-performance standards.
DIMENSIONS
- Piece length: 10 cm
- Before Ø: 3.0 ± 0.20 mm
- After Ø: 1.3 mm
TECHNICAL SPECIFICATIONS
- Material: Polyolefin (without adhesive film)
- Shrinkage ratio: 2:1
- Operating temperature: -55 to 125 °C
- Minimum shrink temperature: 70 °C
- Full shrink temperature: 120 °C
STANDARDS
- REACH and RoHS compliant
- Halogen-free
- Flammability: UL1581 VW-1
- ISO9001 certified
- IATF16949 certified
- UL and CE certified
SINGLE-WALL 2:1 HEAT-SHRINK TUBING red JMP
- The single-wall heat shrink tubing from JMP is a flexible, flame-retardant polyolefin heat shrink tubing.
- This heat shrink tubing produces little smoke, is abrasion resistant and dioxin free in the event of fire and has excellent electrical and physical properties, including excellent acid and corrosion resistance.
- Suitable for insulation applications in automotive electronics, cable lugs, small electrical components, motor and transformer cables, etc.
- This product is UL listed.
DIMENSIONS
- Piece length: 10 cm
- Before Ø in mm: 3.0 ± 0.20
- After Ø in mm: 1.3
TECHNICAL SPECIFICATIONS
- Material: Polyolefin WITHOUT additional adhesive film on the inside.
- Shrinkage ratio: 2:1
- Operating temperature: -55 ~ 125 °C
- Minimum shrink temperature: 70 °C
- Full shrink temperature: 120 °C
STANDARDS
- REACH and RoHS compliant
- Halogen free
- Flammability: UL1581 VW-1
- ISO9001
- IATF16949
- UL and CE certified
Manufacturer Nr.: JMP
EAN: 4043981450002
