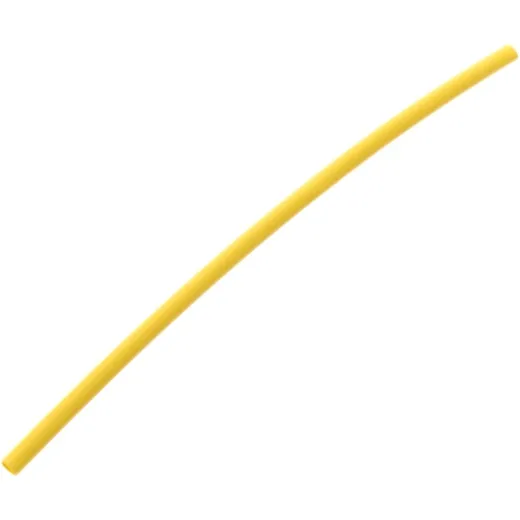

HEAT SHRINK TUBING 2.5MM YELLOW JMP

HEAT SHRINK TUBING 2.5MM YELLOW JMP

Introducing the HEAT SHRINK TUBING 2.5MM YELLOW JMP, a reliable solution for your electrical insulation needs. This single-wall heat shrink tu from JMP is made from flexible, flame-retardant polyolefin, ensuring superior performance in various applications.

The tu exhibits low smoke production, high abrasion resistance, and is free from dioxins in case of fire. With outstanding electrical and physical properties, it offers excellent acid and corrosion resistance, making it ideal for use in automotive electronics, cable lugs, small electrical components, and motor and transformer cables.

This product is UL listed, ensuring compliance with safety standards. Below are the key dimensions and technical specifications:

• Piece length: 10 cm
• Before Ø: 2.5 ± 0.20 mm
• After Ø: 1.0 mm

Technical Specifications:

• Material: Polyolefin without additional adhesive film
• Shrinkage ratio: 2:1
• Operating temperature: -55 ~ 125 °C
• Minimum shrink temperature: 70 °C
• Full shrink temperature: 120 °C

Standards:

• REACH and RoHS compliant
• Halogen free
• Flammability: UL1581 VW-1
• ISO9001
• IATF16949
• UL and CE certified

Choose the HEAT SHRINK TUBING 2.5MM YELLOW JMP for your next project and experience high-quality insulation with peace of mind.

Manufacturer Nr.: JMP

EAN: 4043981450071
