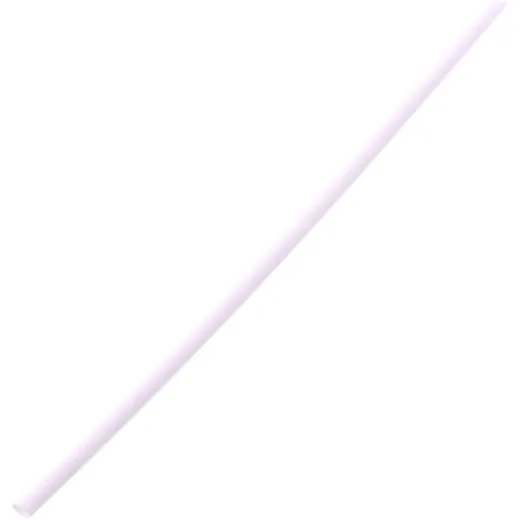

HEAT SHRINK TUBING 2.5MM WHITE JMP

HEAT SHRINK TUBING 2.5MM WHITE JMP

HEAT SHRINK TUBING 2.5MM WHITE JMP is a versatile solution for numerous insulation applications. This single-wall 2:1 heat shrink tu, manufactured by JMP, is made from flexible, flame-retardant polyolefin that ensures durability and reliability.

This white heat shrink tu produces minimal smoke, is abrasion-resistant, and dioxin-free in case of fire. Its excellent electrical and physical properties, alongside superior acid and corrosion resistance, make it ideal for use in automotive electronics, cable lugs, small electrical components, motor and transformer cables, and more.

The heat shrink tu is UL listed, guaranteeing compliance with safety standards. DIMENSIONS: Piece length: 10 cm; Before Ø: 2.5 ± 0.20 mm; After Ø: 1.0 mm.

TECHNICAL SPECIFICATIONS:

• Material: Polyolefin without additional adhesive film on the inside.
• Shrinkage ratio: 2:1
• Operating temperature: -55 to 125 °C
• Minimum shrink temperature: 70 °C
• Full shrink temperature: 120 °C

STANDARDS:

• REACH and RoHS compliant
• Halogen-free
• Flammability: UL1581 VW-1
• ISO9001
• IATF16949
• UL and CE certified

Manufacturer Nr.: JMP

EAN: 4043981449914
