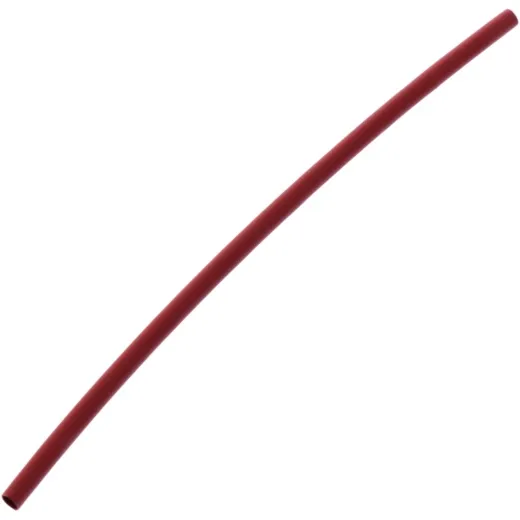

HEAT SHRINK TUBING 2.5MM RED JMP

HEAT SHRINK TUBING 2.5MM RED JMP

Introducing the HEAT SHRINK TUBING 2.5MM RED JMP, a versatile and reliable solution for your insulation needs. This single-wall heat shrink tu features a 2:1 shrink ratio, allowing it to conform tightly to various substrates.

The tu is crafted from flexible, flame-retardant polyolefin that ensures minimal smoke production in case of fire. It remains abrasion resistant and is dioxin-free, providing superior safety. Additionally, it boasts excellent electrical and physical properties, including outstanding acid and corrosion resistance.

Ideal for a range of applications, including automotive electronics, cable lugs, small electrical components, and motor and transformer cables. This product is UL listed, ensuring it meets rigorous safety standards.

DIMENSIONS

• Piece length: 10 cm
• Before Ø: 2.5 ± 0.20 mm
• After Ø: 1.0 mm

TECHNICAL SPECIFICATIONS

• Material: Polyolefin (without additional adhesive film on the inside)
• Shrinkage ratio: 2:1
• Operating temperature: -55 ~ 125 °C
• Minimum shrink temperature: 70 °C
• Full shrink temperature: 120 °C

STANDARDS

• REACH and RoHS compliant
• Halogen free
• Flammability: UL1581 VW-1
• ISO9001
• IATF16949
• UL and CE certified
