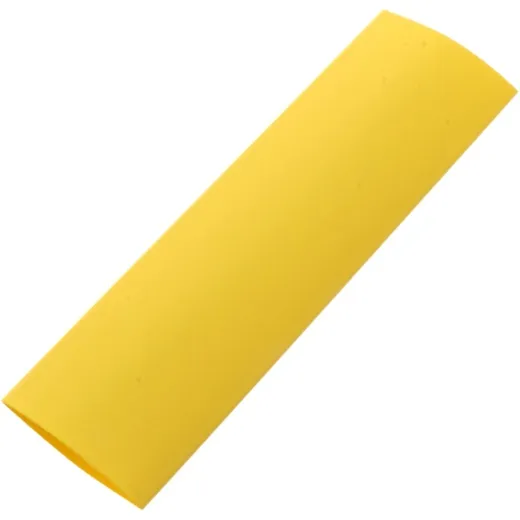

HEAT SHRINK TUBING 19MM YELLOW JMP

HEAT SHRINK TUBING 19MM YELLOW JMP

Introducing the HEAT SHRINK TUBING 19MM YELLOW JMP, your go-to solution for reliable insulation and protection in electrical applications. This high-quality, single-wall heat shrink tu features a 2:1 shrink ratio, ensuring a snug fit around your components.

Crafted from flexible, flame-retardant polyolefin, this heat shrink tu minimizes smoke production and is abrasion-resistant. In the event of fire, it is dioxin-free, providing peace of mind while maintaining excellent electrical and physical properties, including outstanding acid and corrosion resistance.

The yellow heat shrink tu is ideal for a variety of applications, including insulation for automotive electronics, cable lugs, small electrical components, and motor and transformer cables. This product is UL listed, ensuring it meets the highest safety standards.

Dimensions

• Piece Length: 10 cm
• Before Diameter: 19.0 ± 0.50 mm
• After Diameter: 9.0 mm

Technical Specifications

• Material: Polyolefin without additional adhesive film
• Shrinkage Ratio: 2:1
• Operating Temperature: -55 to 125 °C
• Minimum Shrink Temperature: 70 °C
• Full Shrink Temperature: 120 °C

Standards

• REACH and RoHS compliant
• Halogen-free
• Flammability: UL1581 VW-1
• ISO9001
• IATF16949
• UL and CE certified
