HEAT SHRINK TUBING 19MM WHITE JMP

HEAT SHRINK TUBING 19MM WHITE JMP

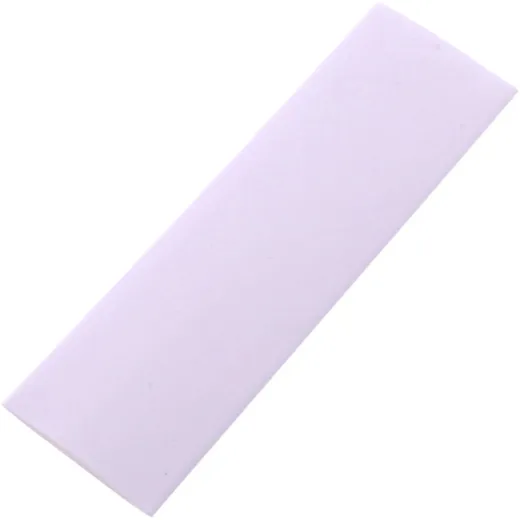

The HEAT SHRINK TUBING from JMP is a high-quality, single-wall, 2:1 heat-shrink tu designed for versatile applications. This white heat shrink tu is made from flexible, flame-retardant polyolefin material, ensuring reliable insulation for a variety of electronic components.

Featuring a low smoke emission in the event of fire, it is both abrasion resistant and dioxin-free, making it suitable for use in automotive electronics, cable lugs, small electrical components, and motor or transformer cables.

This product is UL listed, providing assurance of its quality and safety. The heat shrink tu comes in dimensions of 10 cm in length, with an initial diameter of 19.0 ± 0.50 mm and a final diameter of 9.0 mm when fully shrunk.

Technical Specifications

• Material: Polyolefin (without additional adhesive film)
• Shrinkage Ratio: 2:1
• Operating Temperature: -55 to 125 °C
• Minimum Shrink Temperature: 70 °C
• Full Shrink Temperature: 120 °C

Standards

• REACH and RoHS Compliant
• Halogen Free
• Flammability: UL1581 VW-1
• ISO9001
• IATF16949
• UL and CE Certified
