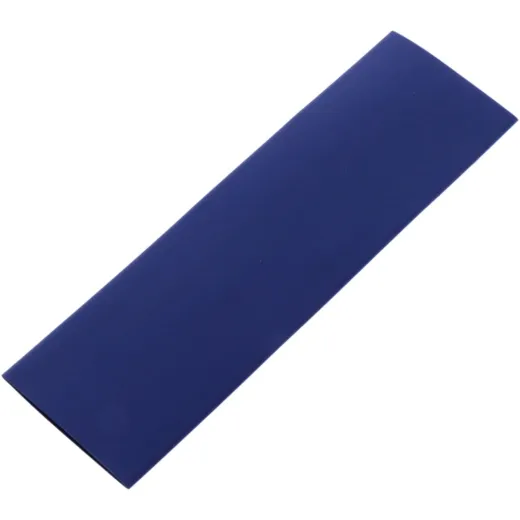

HEAT SHRINK TUBING 19MM BLUE JMP
HEAT SHRINK TUBING 19MM BLUE JMP
The single-wall 2:1 heat shrink tu in blue from JMP is designed for durability and versatility. Made from flexible, flame-retardant polyolefin, this heat shrink tu generates minimal smoke when exposed to fire and is dioxin-free, ensuring safety and compliance. With excellent abrasion resistance, acid resistance, and corrosion resistance, it is ideal for a wide range of insulation applications including automotive electronics, cable lugs, small electrical components, and motor and transformer cables.
Product Features:
- Material: Polyolefin (no additional adhesive film)
- Shrinkage Ratio: 2:1
- Operating Temperature: -55°C to 125°C
- Minimum Shrink Temperature: 70°C
- Full Shrink Temperature: 120°C
- Dimensions:
- Piece Length: 10 cm
- Before Ø: 19.0 ± 0.50 mm
- After Ø: 9.0 mm
Standards Compliance:
- REACH and RoHS compliant
- Halogen free
- Flammability: UL1581 VW-1
- ISO9001 and IATF16949 certified
- UL and CE certified
This is an automatic translation. Click here for the original text in German
SINGLE-WALL 2:1 HEAT-SHRINK TUBING blue JMP
- The single-wall heat shrink tubing from JMP is a flexible, flame-retardant polyolefin heat shrink tubing.
- This heat shrink tubing produces little smoke, is abrasion resistant and dioxin free in the event of fire and has excellent electrical and physical properties, including excellent acid and corrosion resistance.
- Suitable for insulation applications in automotive electronics, cable lugs, small electrical components, motor and transformer cables, etc.
- This product is UL listed.
DIMENSIONS
- Piece length: 10 cm
- Before Ø in mm: 19.0 ± 0.50
- After Ø in mm: 9.0
TECHNICAL SPECIFICATIONS
- Material: Polyolefin WITHOUT additional adhesive film on the inside.
- Shrinkage ratio: 2:1
- Operating temperature: -55 ~ 125 °C
- Minimum shrink temperature: 70 °C
- Full shrink temperature: 120 °C
STANDARDS
- REACH and RoHS compliant
- Halogen free
- Flammability: UL1581 VW-1
- ISO9001
- IATF16949
- UL and CE certified
Manufacturer Nr.: JMP
EAN: 4043981449891
