HEAT SHRINK TUBING 12.5MM YELLOW

HEAT SHRINK TUBING 12.5MM YELLOW

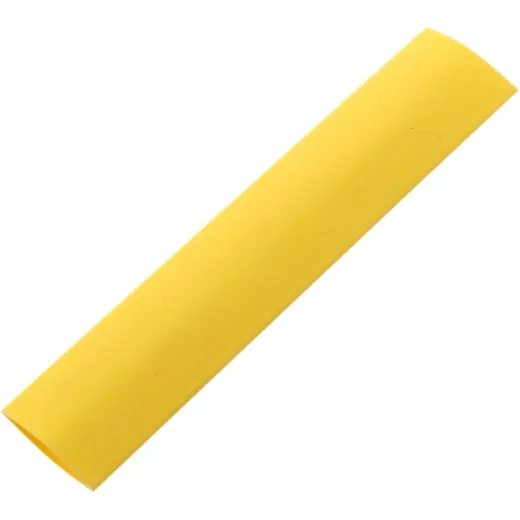

Product Name: HEAT SHRINK TUBING 12.5MM YELLOW JMP - 10 PIECES (Shrink Rate 2:1)

Description: The single-wall 2:1 heat shrink tu in yellow by JMP is crafted from flexible, flame-retardant polyolefin material. This heat shrink tu is designed to emit minimal smoke and offers high abrasion resistance and dioxin-free properties when exposed to fire. It boasts excellent electrical and physical attributes, showcasing superior acid and corrosion resistance, making it ideal for a variety of insulation applications.

Applications include: automotive electronics, cable lugs, small electrical components, and motor and transformer cables.

Certification: This product is UL listed, ensuring quality and safety standards.

Dimensions:

• Piece length: 10 cm
• Before Ø: 12.5 ± 0.30 mm
• After Ø: 6.0 mm

Technical Specifications:

• Material: Polyolefin without additional adhesive film on the inside
• Shrinkage Ratio: 2:1
• Operating Temperature: -55 ~ 125 °C
• Minimum Shrink Temperature: 70 °C
• Full Shrink Temperature: 120 °C

Standards:

• REACH and RoHS compliant
• Halogen-free
• Flammability: UL1581 VW-1
• ISO9001
• IATF16949
• UL and CE certified

Manufacturer Nr.: JMP

EAN: 4043981450125
