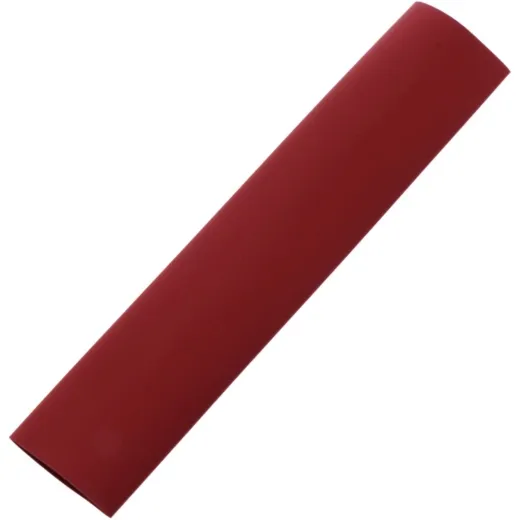

HEAT SHRINK TUBING 12.5MM RED

HEAT SHRINK TUBING 12.5MM RED - 10 PIECES

Experience the reliability of the HEAT SHRINK TUBING 12.5MM RED from JMP, featuring a 2:1 shrink ratio. This high-quality, single-wall heat shrink tu is made from flexible, flame-retardant polyolefin material, ensuring optimal performance in demanding environments.

The tu offers impressive features, including low smoke production, abrasion resistance, and dioxin-free properties in case of fire. It also exhibits excellent electrical and physical characteristics, along with exceptional acid and corrosion resistance.

Ideal for use in insulation applications across automotive electronics, cable lugs, small electrical components, motor, and transformer cables. Rest assured, this product is UL listed for safety and compliance.

DIMENSIONS

• Piece length: 10 cm
• Before Ø: 12.5 ± 0.30 mm
• After Ø: 6.0 mm

TECHNICAL SPECIFICATIONS

• Material: Polyolefin without additional adhesive film inside
• Shrinkage ratio: 2:1
• Operating temperature: -55 to 125 °C
• Minimum shrink temperature: 70 °C
• Full shrink temperature: 120 °C

STANDARDS

• REACH and RoHS compliant
• Halogen free
• Flammability: UL1581 VW-1
• ISO9001 certified
• IATF16949 certified
• UL and CE certified
