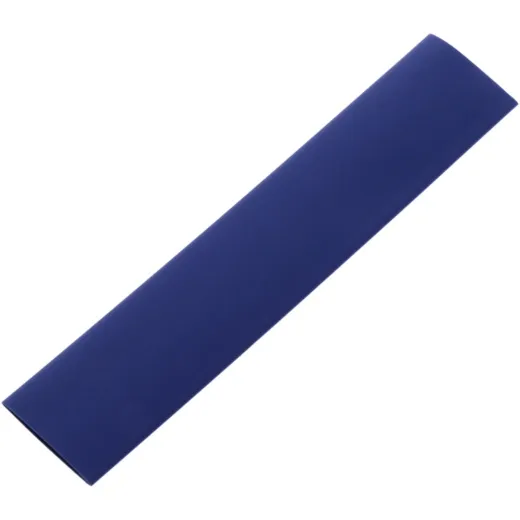

HEAT SHRINK TUBING 12.5MM BLUE

HEAT SHRINK TUBING 12.5MM BLUE - JMP

Enhance your insulation projects with the HEAT SHRINK TUBING 12.5MM BLUE from JMP. This single-wall, 2:1 heat-shrink tu is crafted from flexible, flame-retardant polyolefin, ensuring durability and safety. It generates minimal smoke and is abrasion-resistant, as well as dioxin-free in case of fire.

With outstanding electrical and physical properties, this heat shrink tu offers excellent acid and corrosion resistance, making it ideal for various applications, including automotive electronics, cable lugs, small electrical components, and motor and transformer cables.

This product is UL listed, guaranteeing compliance with high safety standards, and meets the requirements of REACH and RoHS. Additionally, it is halogen-free, and its flammability rating meets UL1581 VW-1 standards.

DIMENSIONS

Piece length: 10 cm

Before Ø: 12.5 ± 0.30 mm

After Ø: 6.0 mm

TECHNICAL SPECIFICATIONS

Material: Polyolefin (without additional adhesive film on the inside)

Shrinkage ratio: 2:1

Operating temperature: -55 ~ 125 °C

Minimum shrink temperature: 70 °C

Full shrink temperature: 120 °C

STANDARDS

ISO9001

IATF16949

UL and CE certified
