BALL COUPLING 1500KG WW150-RG

BALL COUPLING 1500KG WW150-RG

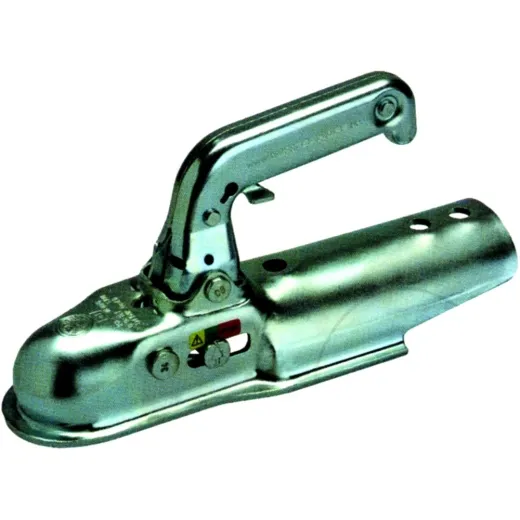

Introducing the WINTERHOFF towing ball coupling WW 150-RG, designed for robust performance and versatility. This high-quality model is crafted from durable sheet steel and is available in multiple configurations to suit all drawbar connections.

• Effortless one-hand operation for convenient use
• Large handle for easy grip
• Integrated safety catch on the handle to prevent accidental opening
• Plug holder can be conveniently fitted into the handle
• Multifunctional display on the side allows you to check coupling status (open/closed) and wear levels (coupling/ball)
• Opening the coupling is achieved by tilting the handle forward
• Closing the coupling is possible by applying downward pressure or through drawbar load
• EC approval number: 00-0229 e4
• Anti-theft feature: Socket lock integrated within the handle

Technical Specifications:

• Drawbar Diameter: 70 mm
• Towing Capacity: 1500 KG
• Permissible Drawbar Load: 100 KG
• Drill Hole Diameter: 12.5 mm
• Connection Length: 90/116 mm
