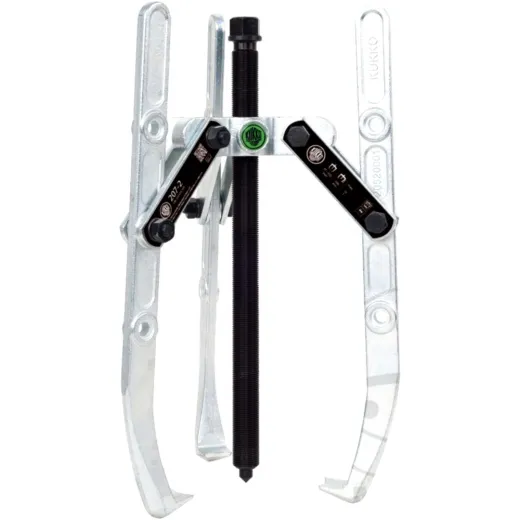

3-Arm-LASCHENABZIEHER
Kukko 3-Arm Puller: The ultimate solution for extracting large bearings, gears, and washers with maximum efficiency.
Designed for robust applications in trade, workshop, and industry, this heavy-duty 3-arm puller features oscillating, height-adjustable puller legs and a versatile combination crosshead. With a clamping width of up to 450 mm and a clamping depth of 400 mm, it delivers unmatched adaptability for various component removal tasks.
This tool excels in centric pulling, capable of effortlessly removing any part positioned on a shaft that is freely accessible. The oscillating puller legs ensure seamless adjustment to any installation situation, making it highly versatile. Thanks to the combination crossbar, you can choose to operate with either 2 or 3 arms, depending on your requirements.
Engineered with a claw shape that varies by version, this 3-arm design guarantees even load distribution, providing a particularly secure grip on the part to be extracted.Technical Specifications:
- Clamping Width: 450 mm
- Clamping Depth: 400 mm
- Max. Pulling Force: 100 kN (10 t)
- Weight: 9.40 kg
- Width Across Flats: 27 mm
Scope of Delivery: 1x 3-arm puller with oscillating puller legs.
Return to the translated text click hereKukko 3-Arm-Laschenabzieher mit osz., höhenverst. Abziehschenkeln, Kombi-Traverse, bis 450 mm Spannweite, 400 mm Spanntiefe
- Der schwere, 3-armige Laschenabzieher mit oszillierenden, höhenverstellbaren Abziehschenkeln und Kombi-Traverse wird zum zentrischen Abziehen von großen Lagern, Zahnrädern und Scheiben in allen gängigen Größen für Handwerk, Werkstatt und Industrie eingesetzt.
- Damit lässt sich jedes Bauteil lösen, das auf einer Welle sitzt und von außen frei zugänglich ist.
- Die oszillierenden Abziehschenkel passen sich jeder Einbausituation an und sind durch die Verstellmöglichkeit der Spanntiefe universell einsetzbar.
- Dank der Kombi-Traverse kann der Abzieher sowohl 2-armig als auch 3-armig verwendet werden.
- Je nach Ausführung unterscheidet sich die Klauenform.
- Die 3-Armigkeit garantiert eine gleichmäßige Lastverteilung und dadurch einen besonders sicheren Halt am abzuziehenden Teil.
Technische Daten:
Spannweite 450mm
Spanntiefe 400mm
max. Zugkraft 100kn
max. Zugkraft 10t
Gewicht 9,40 kg
Schlüsselweite 27mm
Lieferumfang:
1x 3-Arm-Laschenabzieher mit osz
This is an automatic translation. Click here for the original text in GermanKukko 3-arm puller with oscillating, height-adj. Puller legs, combi traverse, up to 450 mm clamping width, 400 mm clamping depth
- The heavy-duty, 3-arm puller with oscillating, height-adjustable puller legs and combination crosshead is used for centric pulling of large bearings, gears and washers in all standard sizes for trade, workshop and industry.
- It can be used to remove any component that sits on a shaft and is freely accessible from the outside.
- The oscillating puller legs adapt to any installation situation and can be used universally thanks to the adjustable clamping depth.
- Thanks to the combination crossbar, the puller can be used with 2 or 3 arms.
- The claw shape differs depending on the version.
- The 3-arm design guarantees an even load distribution and therefore a particularly secure grip on the part to be pulled off.
Technical data:
Clamping width 450mm
Clamping depth 400mm
max. pulling force 100kn
max. pulling force 10t
weight 9,40 kg
Width across flats 27mm
Scope of delivery:
1x 3-arm puller with osz
Manufacturer Nr.: Kukko 207-2
EAN: 4021176030123
