ELECTRONIC INDICATOR RELAY

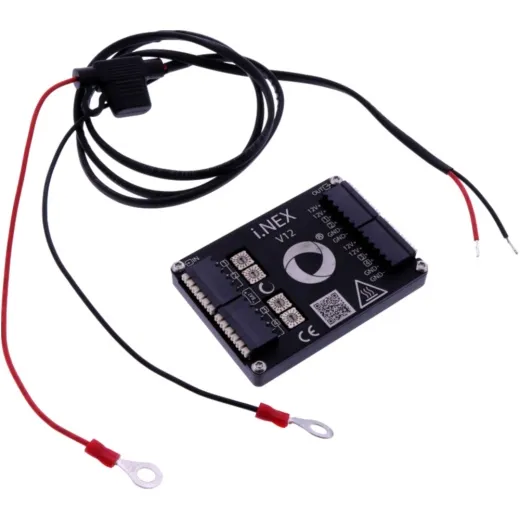

ELECTRONIC INDICATOR RELAY - KELLERMAN I.NEX V12 12V

The Kellermann i.NEX is the ultimate electronic universal solution for motorcycle lighting needs. Designed to facilitate the conversion of indicators, tail/brake lights, and position lights, this innovative system can connect up to four indicators along with a tail light, brake light, and position light, making it a versatile choice for any motorcycle.

With the Kellermann i.NEX, installation becomes a breeze. Simply connect your lights directly to the i.NEX and set the required parameters using easy-to-use rotary switches. This system ensures compatibility with classic bikes, new models, and modern operating systems, delivering optimal performance with no error messages in the cockpit.

Key Features:

• Universal electronic solution for motorcycle indicators, tail lights, brake lights, and position lights
• Compatible with both classic and modern motorcycles
• Ensures correct flashing frequency without error messages
• Eliminates disruptive quiescent currents
• Facilitates installation of indicators with varying power consumption
• Can be used with minus-switched indicators

Technical Information:

The i.NEX - V12 operates at a standard 12 volts, accommodating up to 10 watts of total power for the functions being replaced. To calculate the load:

Constant lights: Full power / Indicators: Half power.
Example: Tail light 1W + brake light 3W + indicators 3W (1.5W) + indicators 3W (1.5W) = 7W.

Note that the watts and volts are indicated on the lenses of the standard lights. If you require a different product, consider the following:

• 21 Watt indicators need one i.LOAD - IL 7.5 per blinker
• For vehicles with a standard manual 2-3 pole indicator relay, consider these options:
  - Indicator relay R1 (one piece per vehicle)
  - Indicator relay R2 (one piece per vehicle)
• For 5-9 Volt lights with an on-board voltage of 12V, use i.NEX - V8
